LED 14.0 Matte FHD 30 PIN 14AMN7 IPS B140HAN04.0 Edgeless
LED 14.0 Matte FHD 30 PIN 14AMN7 IPS B140HAN04.0 Edgeless
Regular price
Rs.12,000.00
Regular price
Sale price
Rs.12,000.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
14.0" FHD 30pin B140HAN04.0 For Thinkpad IdeaPad 1 14AMN7 Non-Touch IPS LCD Screen 5D11D70721 5D11F28687 5D10Z46334 5D10Z86938
- Model P/N
- B140HAN04.0
- Diagonal Size
- 14.0"
- Panel Type
- a-Si TFT-LCD, LCM
- Resolution
- 1920(RGB)×1080, FHD 157PPI
- Pixel Format
- RGB Vertical Stripe
- Active Area
- 309.37(W)×174.02(H) mm
- Bezel Opening
- -
| Outline Size | 315.87(W)×197.48(H)×3(D) mm | Treatment | Antiglare |
|---|---|---|---|
| Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)
|
Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry | Work Mode | AHVA, Normally Black, Transmissive
|
| Color Depth | 262K 45% NTSC | Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) | Used for |  |
| Refresh Rate | 60Hz
|
Touchscreen | Without |

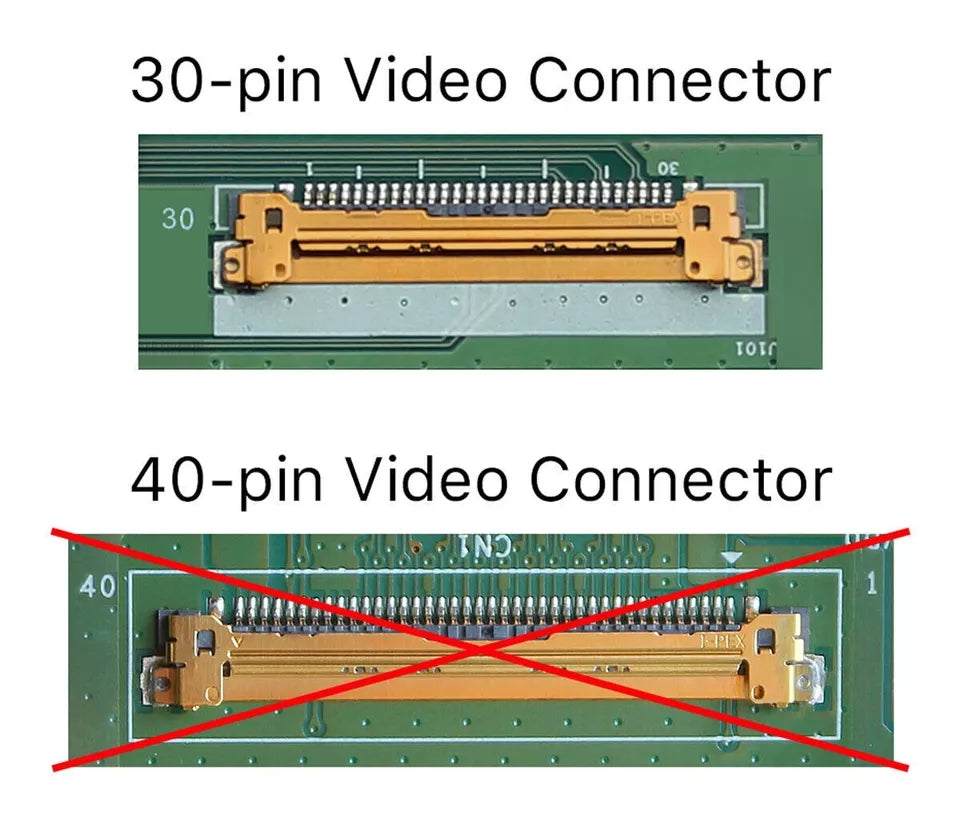

| Signal Type | eDP (2 Lanes) , eDP1.2 , 30 pins Connector | ||
| Voltage Supply | 3.3V (Typ.) | ||
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | ||
