LED 15.6 Matt FHD | Slim 30pin (IPS) Without Fitting/EdgeLess (N156HCA-EAB)

LED 15.6 Matt FHD | Slim 30pin (IPS) Without Fitting/EdgeLess (N156HCA-EAB)

Rs.11,500.00
Rs.11,500.00
Sale Sold out
Shipping calculated at checkout.

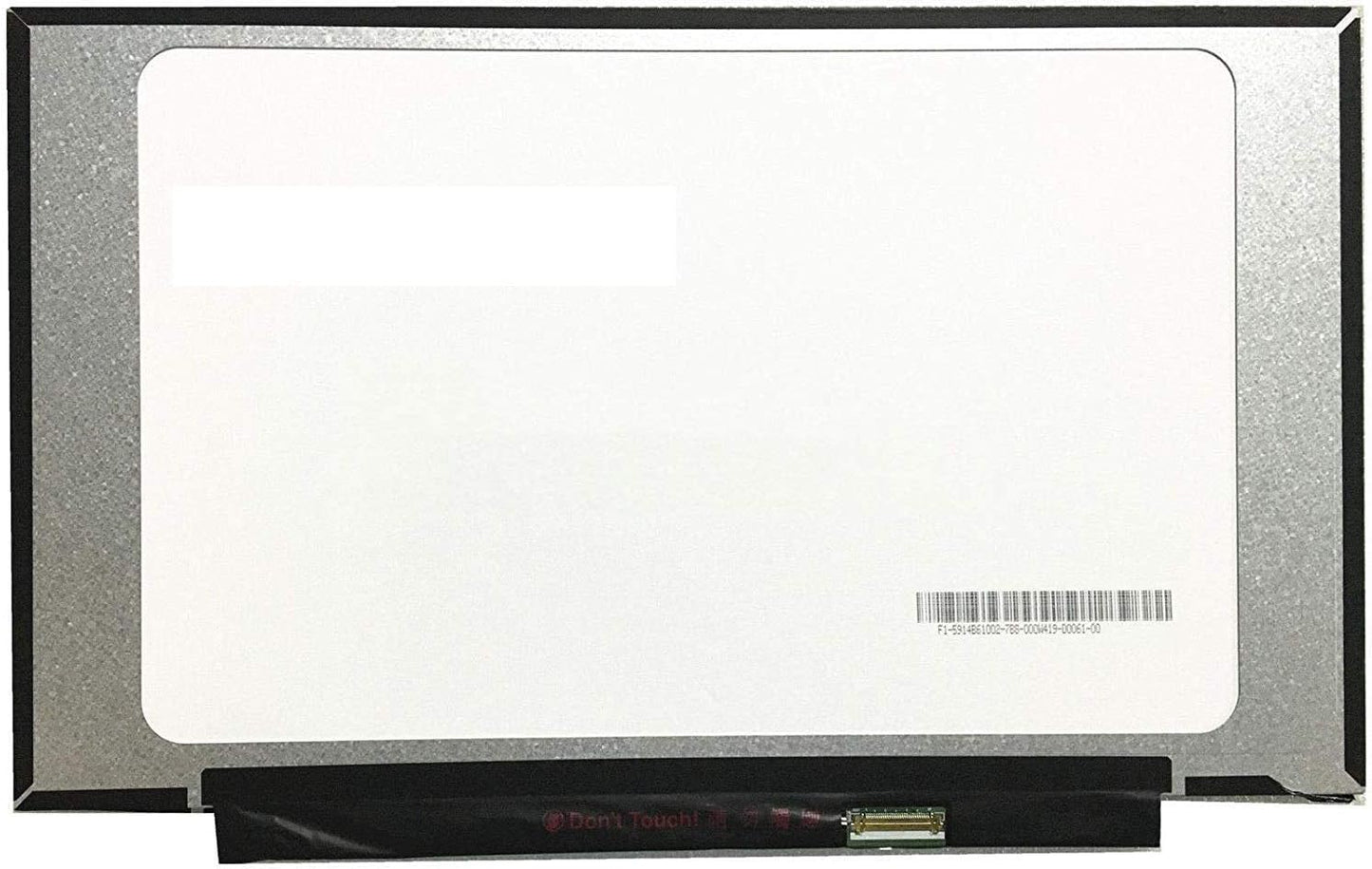

15.6-inch Laptop IPS LCD Screen NV156FHM-N45 Matte NV156FHM-N35 Glossy N156HCA-EAB LED Matrix Display Panel FHD 1920x1080 30pin

Diagonal Size
15.6"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1920(RGB)×1080, FHD  141PPI
Pixel Format
RGB Vertical Stripe
Active Area
344.16(W)×193.59(H) mm
Bezel Opening
-
  • Outline Dim.350.66(H)×216.25(V)×3.2(D) mm
  • TreatmentAntiglare, Hard coating (3H)
  • Luminance250 cd/m² (Typ.)
  • Contrast Ratio700:1 (Typ.) (TM)
  • View DirectionSymmetry
  • Response Time14/11 (Typ.)(Tr/Td)
  • Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
  • Operating Mode AAS, Normally Black, Transmissive
  • Support Color16.7M   45% NTSC
  • Light Source WLED , 15K hours , With LED Driver
  • Form StyleSlim (PCBA Flat, T≤3.2mm)
  • Designed For
  • Frame Rate60Hz
  • Touch PanelWithout
  • Interface Type

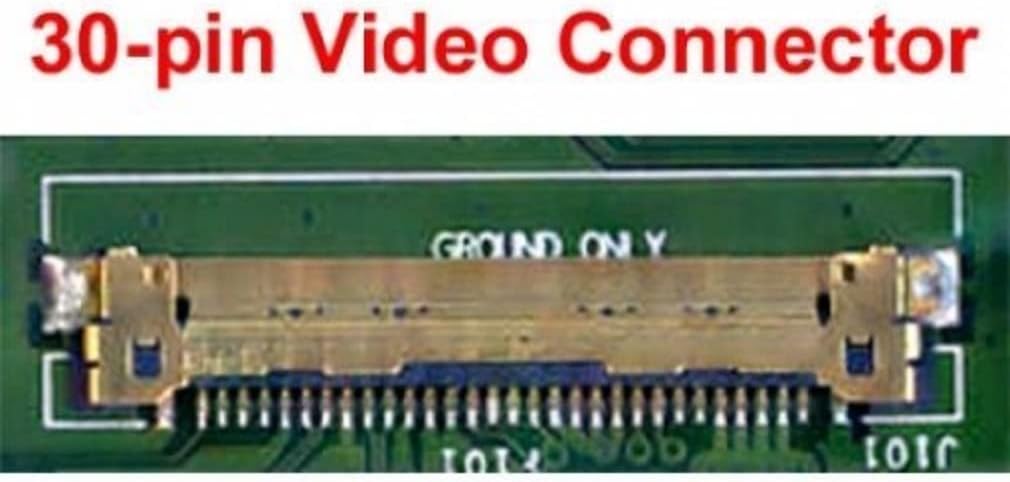

  • eDP (2 Lanes) , eDP1.2 , 30 pins Connector
  • Power Supply

                 3.3V (Typ.)

  • Environment

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
